Line bending jigs
Click on the screenshot above to view the "Line Bending Jigs and Formers" animation by Laszlo Lipot

An image showing the Flash animation logo SWF Flash logo is a link to a Flash animation.

Flash animations are embedded into the pages of all my D&T Modules but there are pictorial links to the animations on this web site so that devices that cannot play Flash animations will at least show a jpeg screenshot of the animation.

If your PC or personal digital assistant (PDA) can play Flash animations you may click on an image showing the Flash animation logo SWF Flash logo to view the animation in a new window.
(Your browser may require you to click "Allow Blocked Content" to view the animation). See info about viewing Flash animations.

A bending jig is anything that helps us bend metal, wood or plastic to a desired angle or form. A bending jig used for line bending thermoplastic sheets should include:

Diagram A above illustrates a simple bending former that may be made by chamfering a piece of timber.

Diagram B above illustrates a steel angle bar being used as a bending former. Note that the edges of both jigs have been rounded where the plastic will be bent. To call them jigs, these formers should have a method of holding the bent thermoplastic sheet until it cools.

Diagram C above illustrates a cooling jig that holds a heated and bent thermoplastic sheet until it cools.

Line bending jigs

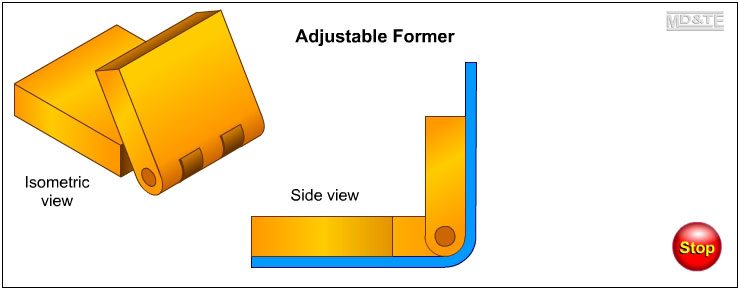

The bending former illustrated above is adjustable. The problem with adjustable jigs and formers is that the hinged part of the jig or former may mark the softened plastic as it is bent. Fixed shape formers are easier to make and are likely to produce superior results.

Click here to view the PDF version of this resource. Line bending PDF Line bending process PDF
Copyright Laszlo Lipot.
