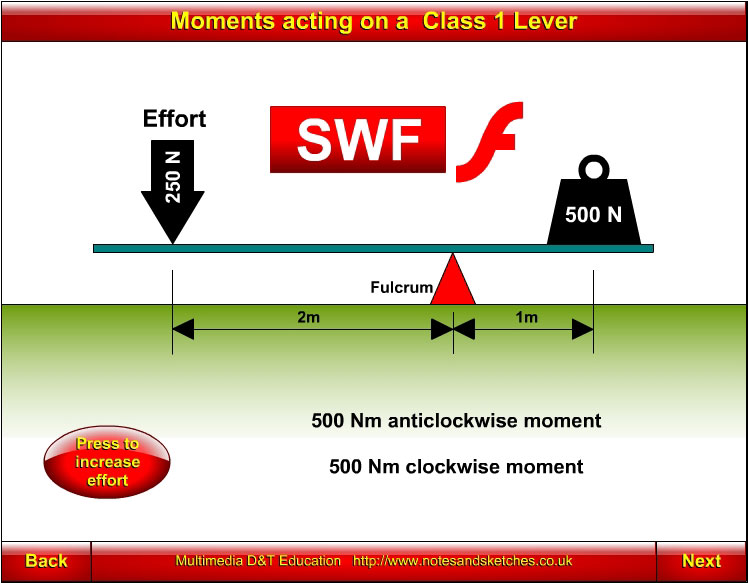

Click on the screenshot above to view the "Moments" animation by Laszlo Lipot

An image showing the Flash animation logo SWF Flash logo is a link to a Flash animation.

Flash animations are embedded into the pages of all my D&T Modules but there are pictorial links to the animations on this web site so that devices that cannot play Flash animations will at least show a jpeg screenshot of the animation.

If your PC or personal digital assistant (PDA) can play Flash animations you may click on an image showing the Flash animation logo SWF Flash logo to view the animation in a new window.
(Your browser may require you to click "Allow Blocked Content" to view the animation). See info about viewing Flash animations.



Moments

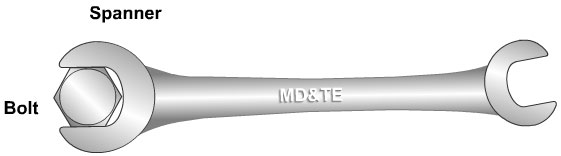

The turning effect on the bolt by the spanner is called a "moment" or torque.

Moments and torque

The moment = the size of the force (N) multiplied by the length of the lever (m)

Moment = Force x Distance

Moments are measured in Nm

therefore: moment (Nm) = force (N) x distance (m)

Principle of Moments

An object is in equilibrium, i.e. it is balanced and not turning or moving when:

The sum of the clockwise moments about a point is equal to the sum of the anticlockwise moments about the point.


Moments

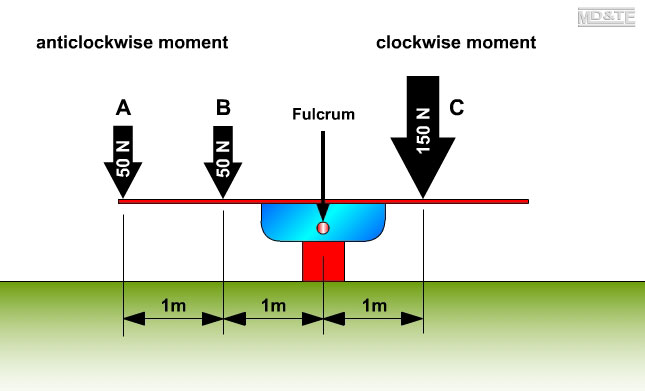

The see-saw is balanced because the clockwise moment is equal to the sum of the anticlockwise moments, i.e.

Moment = Force x Distance

Moment at A = 50N x 2m = 100 Nm anticlockwise moment

Moment at B = 50N x 1m = 50 Nm anticlockwise moment

Anticlockwise moment at A + B = 150 Nm

Moment at C = 150N x 1m = 150 Nm clockwise moment

The see-saw is balanced because the clockwise moment is equal to the sum of the anticlockwise moments.

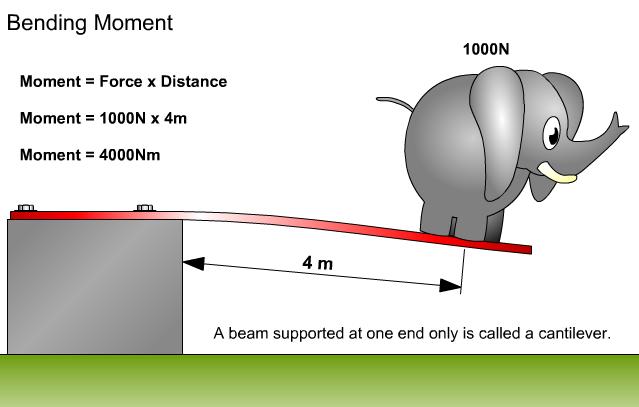

Bending moment



Click here to view Moments PDF Moments PDF Moments PDF
