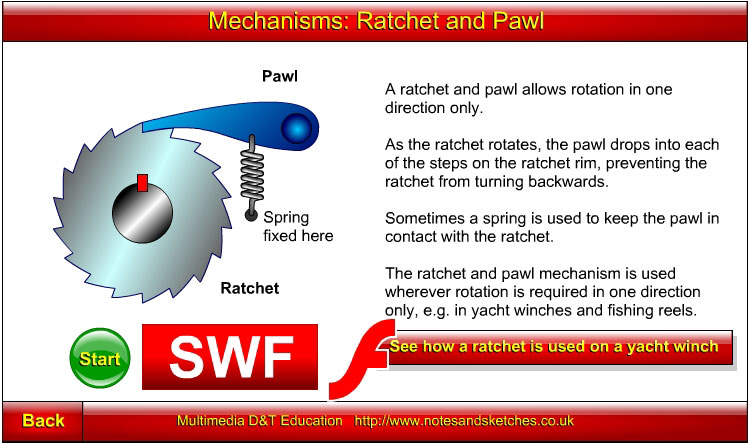

Click on the screenshot above to view the "Ratchet and Pawl" animation by Laszlo Lipot

An image showing the Flash animation logo SWF Flash logo is a link to a Flash animation.

Flash animations are embedded into the pages of all my D&T Modules but there are pictorial links to the animations on this web site so that devices that cannot play Flash animations will at least show a jpeg screenshot of the animation.

If your PC or personal digital assistant (PDA) can play Flash animations you may click on an image showing the Flash animation logo SWF Flash logo to view the animation in a new window.
(Your browser may require you to click "Allow Blocked Content" to view the animation). See info about viewing Flash animations.

Ratchet and Pawl

The purpose of a ratchet and pawl is to allow a shaft to rotate in one direction only.

A ratchet is a wheel with a shape similar to a circular saw blade or horizontal milling cutter. A ratchet fits onto a shaft and is locked onto the shaft by a "key". The key fits into slots in the shaft and ratchet wheel. These slots are called "keyways".

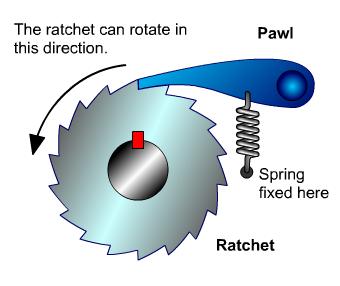

Ratchet rotation allowed

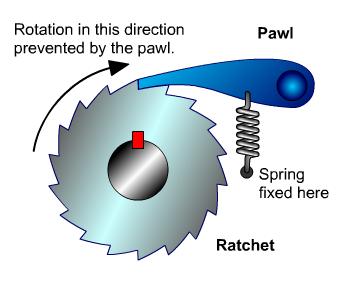

Ratchet rotation prevented by the pawl

A pawl is a metal part that rests on the ratchet. As the ratchet rotates, the pawl drops onto each of the steps on the ratchet rim, preventing the ratchet from turning in the direction of the pawl.

Sometimes a spring is used to keep the pawl in contact with the ratchet.

The ratchet and pawl mechanism is used wherever rotation is required in one direction only, e.g. in yacht winches and fishing reels.
