Plastic

The term plastic means that a material is soft and can be shaped and moulded. The materials that we call plastics, e.g. acrylic, polythene and nylon, have at some point been soft and have been shaped and moulded.

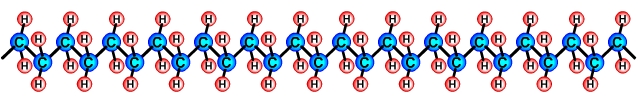

The term polymer comes from the Greek words "poly" meaning many and "mer" meaning units. Polymers are made up of lots of units of molecules (monomers) strung together in a tangled mass. The repeating units of monomers usually have a carbon backbone, e.g. the polyethylene molecule, illustrated below.

Repeating units of the ethene monomer C2H4 are linked together by polymerisation to form the polymer polyethylene / polythene, shown below.
C2H4 ethene monomer

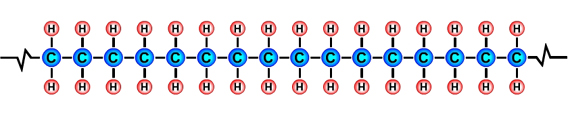

Polyethylene polymer

The main ingredients of polymers

The main ingredients of many polymers are the elements hydrogen and carbon. Carbon forms the backbone of most polymers. (See the diagram of the polyethylene molecule above).

The hydrocarbons used to create plastics are most often obtained from the fossil fuels crude oil, coal and natural gas, however bioplastics are being developed from hydrocarbons that are obtained from natural organic materials such as plants and algae. Bioplastics have the advantages of being biodegradable and sustainable.

Other elements that are often combined with hydrocarbons to create polymers include oxygen, nitrogen, fluorine, chlorine, sulphur, phosphorous and silicon.

Creating monomers: the "cracking process"

A hydrocarbon may be broken down into simpler molecules by a "cracking process." The cracking process involves heating a hydrocarbon in the presence of a catalyst which causes it to break down into simpler molecules such as ethylene (ethene) C2H4, propylene (propene) C3H6, and butene C4H8. A single unit of a molecule like ethene is called a monomer.

In the example below, the long chain molecule C16H34 is broken down into the simpler molecules Ethene
(C2H4), Propene (C3H6) and Octane (C8H18).  Ethene (ethylene) is used to make the polymer polyethylene.

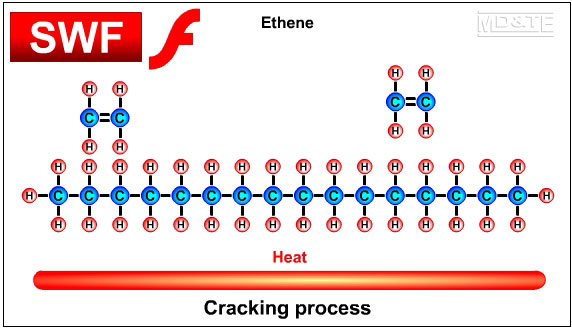

Cracking process
Click on the screenshot above to view the cracking process animation by Laszlo Lipot

An image showing the Flash animation logo SWF Flash logo is a link to a Flash animation.

Flash animations are embedded into the pages of all my D&T Modules but there are pictorial links to the animations on this web site so that devices that cannot play Flash animations will at least show a jpeg screenshot of the animation.

If your PC or personal digital assistant (PDA) can play Flash animations you may click on an image showing the Flash animation logo SWF Flash logo to view the animation in a new window.
(Your browser may require you to click "Allow Blocked Content" to view the animation). See info about viewing Flash animations.

Creating polymers

Polymers are created by linking lots of units of a monomer in a long chain in a process called polymerisation. For example, a polymer called Polyethylene, also called Polythene is made by linking lots of units of the Ethylene C2H4 monomer in a long chain. Polymer chains are usually drawn as 2 dimensional objects for simplicity (see above), however they are long 3 dimensional structures, (see below).


Polyethylene polymer

The physical, chemical and visual properties of a polymer are determined by the length of the chain, the elements that make up the polymer and the way that the elements are combined and structured. (Click to see the formulae of commonly used polymers.)

The properties of polymers may be modified to make them more suitable for special purposes:

  • by replacing atoms or molecules bonded to the backbone with others atoms or molecules
  • by controlling the chain length in a polymer, e.g. the chain length effects the melting point and may effect other physical properties such as viscosity, toughness and impact resistance
  • by creating copolymers, i.e. by creating polymers made from two or more types of monomer, e.g. acrylonitrile butadiene styrene (ABS), which is a copolymer made from acrylonitrile, butadiene and styrene
  • by creating copolymers with various monomer arrangements, e.g.
    • alternating e.g. monomer A - monomer B - monomer A - monomer B - monomer A - etc.
    • periodic e.g. A-A-B-B-B-B-A-A-B-B-B-B-A-A-B-B-B-B-A-A-B-B-B-B-A-A-BBBB-AA- etc.
    • statistical copolymers e.g. A-B-A-A-B-B-A-A-A-A-B-B-A-A-A-A-B-B-A-A-A-A-B-B-B-B-B-B- etc.
    • block copolymers
      • diblock polymers e.g. A-A-B-B-B-A-A--B-B-B-A-A-B-B-B-A-A--B-B-B-A-A-B-B-B- etc.
      • triblock polymers e.g. A-A-B-B-B-C-C-C-C-A-A-B-B-B-C-C-C-C-A-A-B-B-B-C-C-C-C- etc.
    • terpolymers consist of 3 distinct monomers e.g. A-B-C-A-B-C-A-B-C-A-B-C-A-B-C-A-B-C- etc.
    • graft copolymers are polymers that are composed of one polymer chain with other polymer chains or copolymer chains grafted onto it.
  • by using additives such as initiators, antioxidants, foaming agents, plasticisers and colourants.

Additives

Additives are chemicals added to polymers.

Additives such as initiators, antioxidants, foaming agents, plasticisers and colourants are combined with polymers to initiate cross linking and to enhance the physical, chemical or visual properties of polymers.

For example, additives can:

  • protect a polymer from the degrading effects of light, heat, or bacteria
  • improve the flow properties of a polymer that will be moulded
  • colour a polymer throughout, not just on the surface as with most other colouring methods
  • improved surface appearance
  • reduced surface friction.

Thermoplastics

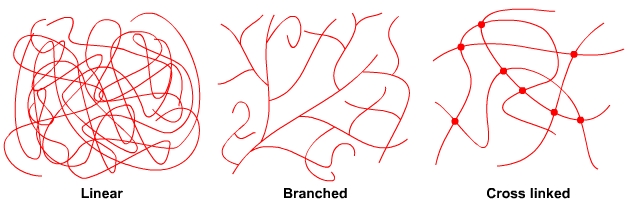

Thermoplastic polymers are either long string-like lines of molecules or long string-like lines of molecules with side branches. The molecules are in a tangled mass that resembles spaghetti. The polymer chains are held together by weak forces between the molecules, called van der Waals forces and by the entanglement of the chains. There are no bonds between the lines of polymer chains.

When a thermoplastic is heated, the forces between the polymer chains weaken and the polymer softens and then melts. In the softened state, thermoplastics can be moulded and reshaped, e.g. by vacuum forming. A thermoplastic can be reheated and reshaped many times. A thermoplastic like acrylic will return to its original shape when reheated unless it is held in its deformed position. The plastic is said to have plastic memory.

Thermosets

Thermosetting polymers consist of long chains of molecules that form bonds between the chains during polymerisation. This forms a single network of tangled polymer chains. Once polymerisation is complete, the polymer chains are set and cannot be softened and reshaped.

An uncured thermosetting polymer is in liquid or semi solid form and has no bonds between the chains of molecules. It may be softened by heating and may be shaped and formed under pressure. However, the heating triggers a chemical reaction that initiates cross linking between the polymer chains that permanently and irreversibly locks the polymer molecules together in a “set” arrangement. The chemical reaction causes the polymer to go hard and stay hard, similar to hard boiling an egg.

Elastomers

Elastomers are polymers with a loose network of tangled and cross linked polymer chains that can be stretched and made straighter.

The cross linking of elastomers is achieved by a process called "vulcanisation".

Vulcanisation involves using a sulphur compound and high temperatures to initiate cross linking and thermosetting of the polymer.

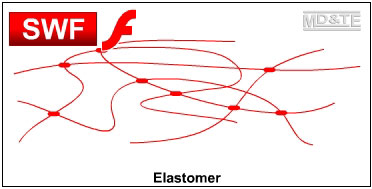

Elastomer
Click on the screenshot above to view
the elastomer animation by Laszlo Lipot

SMART polymers

SMART polymers change in some way when exposed to a change in the environment. The change in the polymer may be a change in colour, a change in solubility, a change in size or a change in shape etc.

The changes may be initiated by:

  • changes in temperature
  • changes in light conditions
  • an electric current
  • magnetic field
  • water

Examples of use

Temperature sensitive polymers that change colour may be used for plastic cups that inform the user when the liquids inside are too hot or too cold to drink.

Shape Memory Polymers, (SMPs) change shape when triggered by a change in temperature, an electric current, magnetic field, light or liquids making them useful for surgical implants, actuators and switches.

Another exciting medical use of smart polymers is the development of bioplastic delivery systems that release medications over a period of time, e.g. a delivery system based on a polylactic acid (PLA) based, phase-sensitive polymer.
