This section of the Design and Resistant Materials Technology package consists of the following notes, animations and exercises about measuring, marking out and setting up tools and equipment.

Measuring and Marking out

  • Measuring and marking out notes
  • Marking out tools and processes (animation)
  • Measuring tools and processes (animation)
  • Measuring & marking out test (interactive)
  • Design exercises
  • Technology exercises

The measuring tools animation covers the following topics:

Measuring Tools Animation  Measuring Tools Animations

  • steel rule
  • micrometer
  • digital micrometer
  • vernier caliper
  • height gauge
  • depth gauge
  • micrometer depth gauge
  • internal caliper
  • external caliper
  • combination set
  • dial gauge
  • screw pitch gauge
  • feeler gauge
  • limit plug gauges (GO / NOGO gauges)
  • limit ring gauge
  • snap gauge
  • drill gauge
  • radius gauge
  • protractor
  • spirit level
  • electronic devices

The marking out tools animation covers the following topics:

Marking Out Tools Animations   Marking Out Animations
  • pens and pencils
  • scriber
  • marking knife
  • engineer's square
  • woodworker's try square
  • dividers trammel
  • odd leg calipers
  • marking gauge
  • cutting gauge
  • mortice gauge
  • centre punch
  • dot punch
  • mitre square
  • centre square
  • sliding bevel
  • bradawl
  • surface gauge
  • straight edge
  • vee block
  • angle plate
  • templates
  • surface plate

Test: Measuring & Marking Out Tools

Sample screen shots from the animations are shown below.

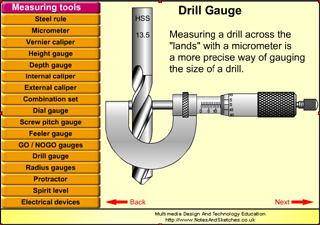

Micrometer: How to read a micrometer. Micrometer: using a micrometer to measure the size of a drill is an accurate alternative to a drill gauge.

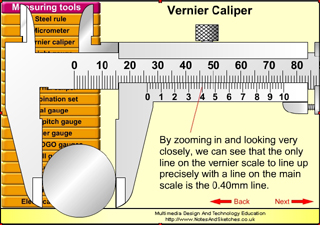

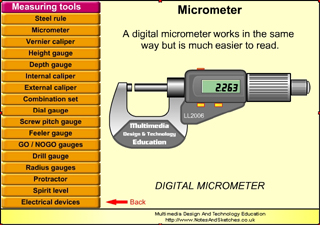

Micrometer: measuring using a digital micrometer; design and technology processes Vernier caliper: how to read a vernier caliper.

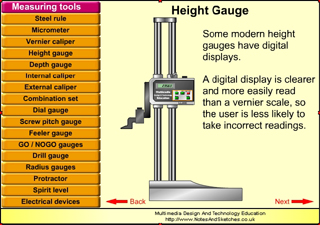

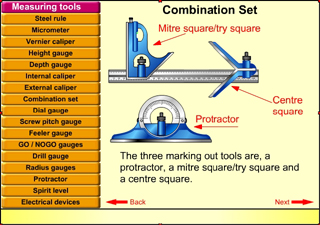

Combination set: how to use a combination set. Height Gauge: how to use a digital and a vernier height gauge.



Measuring, Marking Out & Setting Up Design Exercises

This section, on the full version CD, contains questions about the processes involved in measuring and marking out materials and setting up equipment, including:
  1. Drilling 6mm diameter holes.
    Use notes and sketches to illustrate a design for a jig that will enable 6 holes to be drilled accurately, spaced equidistantly at 50 mm. radius

  2. Clamping jig.
    Use notes and sketches to illustrate a design for a jig that will hold parts of a bicycle frame in their correct relative position for welding and brazing.

Measuring And Marking Out Technology Exercises

This section, on the full version CD, contains 49 exercises, including two from the part complete table below:
The following exercises require you to write notes and to draw sketches to describe measuring and marking out tools used on metal, wood and plastic materials.

Copy the table below and fill in the boxes. (Useful Tip)



Write your description on this side

Draw your illustration this side

Steel Rule: Name the type of steel used to make a steel rule and describe how it is treated to prevented it from rusting and bending easily.



Straight edge: Describe what a straight edge is used for and state the material that it is made from.  State why one edge is usually bevelled.
